New Features and Improvements in Version 2.7

GC Image LCxLC Edition 2.7 has many new features and improvements. See the GC Image LCxLC Edition User Guide for full documentation.

What's New in Version 2.7 Release 3 (February 2018)

Improved Support for Auto Processing Agilent 2D-LC Data

GC Image LCxLC Edition 2.7 Release 3 includes the following improvements for processing Agilent 2D-LC data automatically:

2D-LC metadata are now automatically located for MassHunter .D folders in addition to ChemStation .D folders.

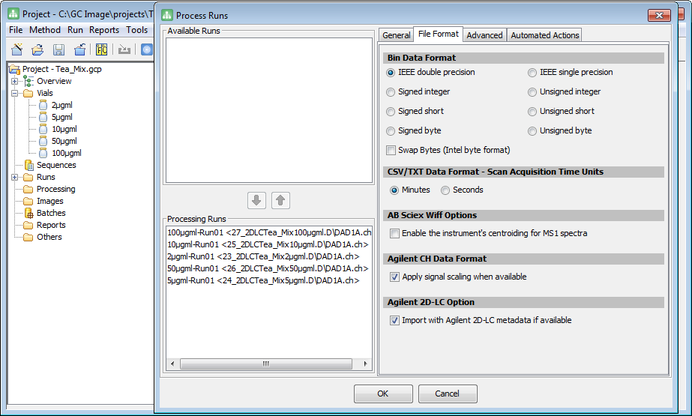

New option for automatically locating 2D-LC metadata when batch processing Agilent 2D-LC runs in Project.

Improved Support for AB SCIEX .Wiff Files

GC Image LCxLC Edition 2.7 Release 3 includes the following improvements for importing AB SCIEX .Wiff data files:

New centroiding option for importing Wiff MS1 profile spectra.
Better performance for importing a Wiff file with multiple samples, and importing and merging multiple Wiff files.
Random socket exceptions during importing Wiff files are completely eliminated.

In addition, the software includes the following improvements for Import and Merge:

A progress dialog is now displayed when opening many files to be merged.
The recently used Cut-by-Cut time settings are now remembered.

New Improvements for Peak Detection, Identification, and Review

GC Image LCxLC Edition 2.7 Release 3 has improved and new features for peak detection, compound identification, and review.

Extract Ion Peaks to Areas has a new Apex detection type that can detect ion peaks much more efficiently in large data files.

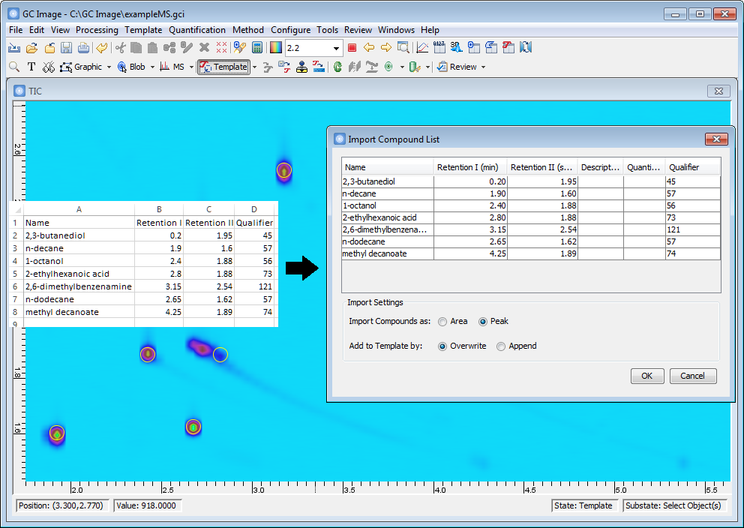

New Import Compound List menu supports importing a compound list from a CSV file to the current template. This new feature allows users to collect a list of compounds from peak tables of a previous analysis or other external sources to guide targeted peak detection and identification easily.

The software includes new settings to control how a reference MS is extracted and used when adding a bob to the template:

New options to specify the type of spectra to be extracted, Peak MS, Blob MS, or based on the library search settings. A new selection tag @lib is introduced to enable CLIC functions to use the spectra based on the library search settings during template matching if selected.
New option to specify if m/z values will be rounded to integer when extracted. Turning off the rounding option allows extracting and storing high-resolution m/z values in a reference MS.
New option to specify if negative intensities will be included in a reference MS.

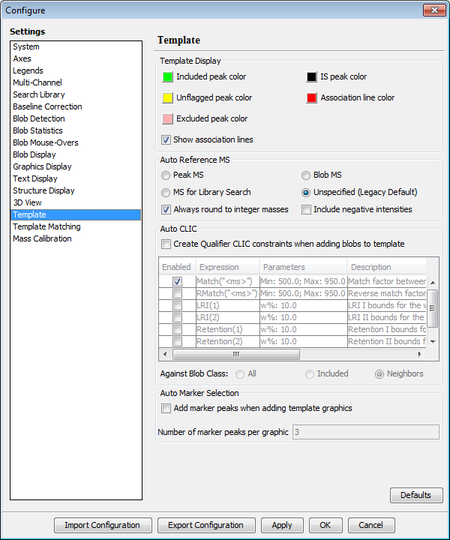

Template - Auto Reference MS Configuration

In addition, the software includes new improvements to assist spectral review:

Reference MS and Hit List are shown in Review Mode's MS Viewer if available.
The software now position 1D Projection to the Quantifier or Qualifier peak location based on the Review SIC setting.
The software now detects 0 Min in the user-specified value mapping and ignores negative regions when automatically adjusting color map for SIC.

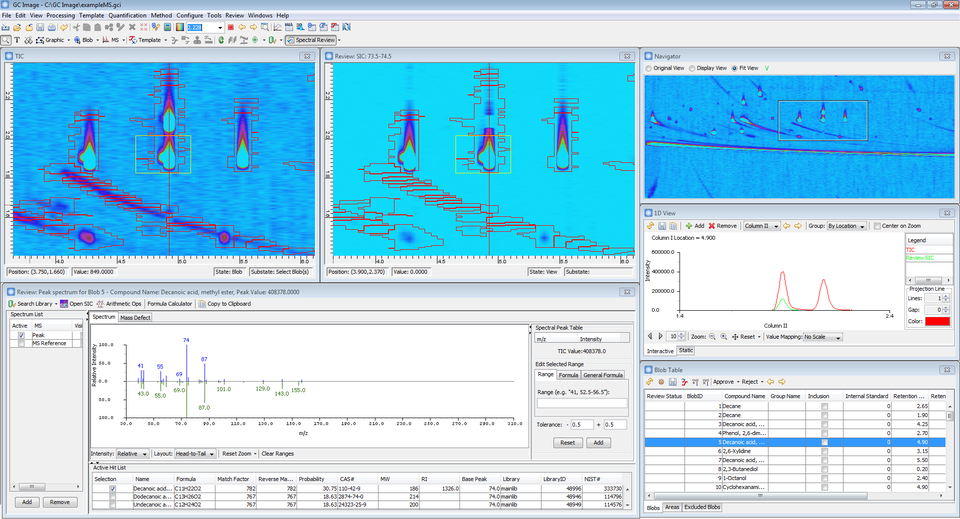

Spectral Review with Reference MS and Hit List

New Improvements for Multi-Sample Analysis with Investigator

GC Image LCxLC Edition 2.7 Release 3 includes the following improvements on Investigator for multi-sample analysis:

PCA results are now kept when switching between analysis attributes.
The Scores and Loadings tables are now saved with the PCA chart report.
A new option for exporting the filtered feature template based on user selection.
String values of a CLIC-based attribute now can be saved to an analysis data folder (.GCA).

In addition, the software has a new CLIC function MSString() that allows users to export blob spectra as part of Blob Table to Investigator or external programs.

What's New in Version 2.7 Release 2 (October 2017)

Improved Support for Heart-Cutting, Variable Modulation, and 2D-LC

GC Image LCxLC Edition 2.7 Release 2 has improved support for small chromatograms, such as ones acquired with heart-cutting including:

Support zooming into tiny regions on 2D View.
Allow arbitrary scales to be set through the tool bar.
Allow more projection lines to be used by 1D View.
Allow creating an edge-to-edge graphical area (rectangle, polygon, and polyline) for manual integration on chromatograms of any size.

For chromatograms acquired with variable modulation, the software has the following improvements:

Image Attributes now displays a Variable Modulation table if available.
Column I dimensions of template graphics are now preserved after saving.

In addition, the software has a new option to combine comprehensive cuts into a single modulation region when Import Agilent 2D-LC data.

Improved Support for Retention Index Calibration

GC Image LCxLC Edition 2.7 Release 2 includes improvements to support generic retention index calibration.

RI tables can be populated from areas and selected blobs in addition to included blobs and a blob set.
An external RI table can be imported and appended to the existing table.

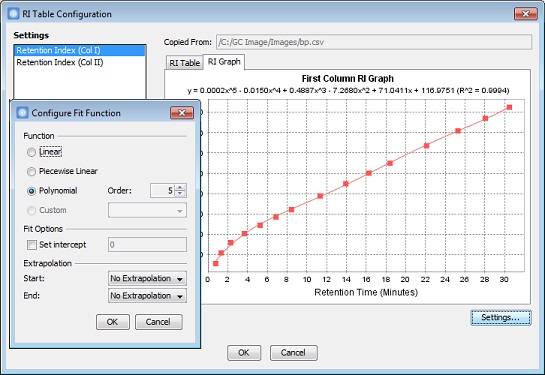

The calibration function and R-squared value are shown in the title of RI Graph.
RI tables have better error checking before applying changes. If an error is found, the problem index row is automatically selected.

New Improvements for Mass Spectral Viewing and Calibration

GC Image LCxLC Edition 2.7 Release 2 has new improvements for streamlining the work flow for mass calibration including:

New option to open the chromatogram saved by Export Recalibrated Centroid Image or Export Profile Data to Centroid.
New OK and Export... button in Configure > Mass Calibration Model that allows quick export of a recalibrated chromatogram.

In addition, the software has new improvements for the default MS mode including:

The default MS mode can be set to either Context, Point, Peak, or Blob/Area through Configure > Settings > Multi-Channel.
MS Context mode now shows the Point spectrum in addition to Peak and Blob/Area spectra.
MS Context mode now shows recalibrated spectra for all spectra.
Improved default color scheme for spectra in the MS Viewer that make different types of spectra more distinct.

New Library Search Features

GC Image LCxLC Edition 2.7 Release 2 includes significant improvements for Library Search features.

Support In-source HiRes (Identity) search type for Batch search mode.
Support NIST Library Search Presearch settings: Default, Fast, and Off

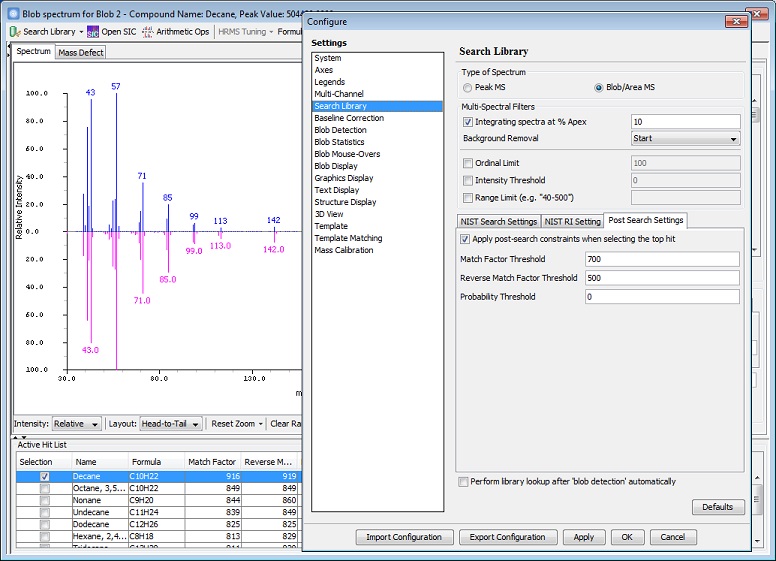

New Multi-Spectral Filter settings for Search Library:
- Integrating spectra at % Apex: Integrate spectra with TIC values reaching at the specified percent of the apex of a blob or an area.
- Background Removal: Options for None, Start, and Start and End: Determines which portion of the blob to be used as a baseline for correcting library spectra.
- Ordinal Limit: Limit the search spectra to the largest number of intensities.
- Intensity Threshold: Limit the search spectra to intensities greater than the specified threshold.
- Range Limit: Limit the search spectra to the specified spectral range.
Blob's current Hit List is loaded in MS Viewer when viewing a peak or blob spectrum.
New Select column in the MS Viewer's Hit List table that clearly shows which hit is selected.
Non-existent RI values in library search results are now displayed as empty instead of -1.

What's New in Version 2.7 Release 1 (June 2017)

Improved Agilent 2D-LC Data Support

GC Image LCxLC Edition 2.7 Release 1 now can utilize the Agilent 2D-LC specific metadata to import multiple heart-cutting, high-resolution sampling (i.e. selective), or comprehensive 2D-LC data, and construct a 2D chromatogram automatically.

Large Data File Support

GC Image LCxLC Edition 2.7 Release 1 includes significant improvements for reading and writing large CDF files, which are used as the file store for MS data.

The software now supports reading and writing of larger CDF files that can contain more data than previously allowed. The maximum data size is now only limited by the file system and memory of the computer.

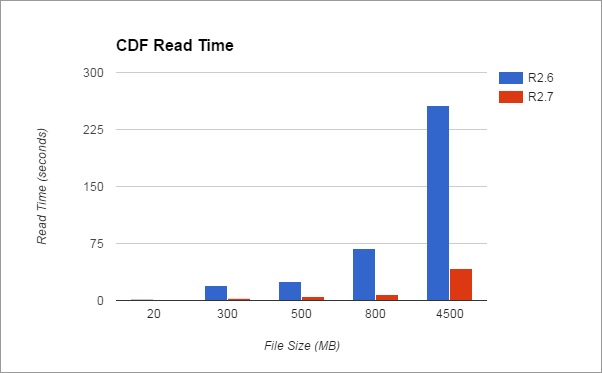

Additional improvements yield faster read times for CDF files on hard disk drives. LC Image now can open large CDF files much faster!

Mass Spectra Centroiding, Calibration, and Viewing

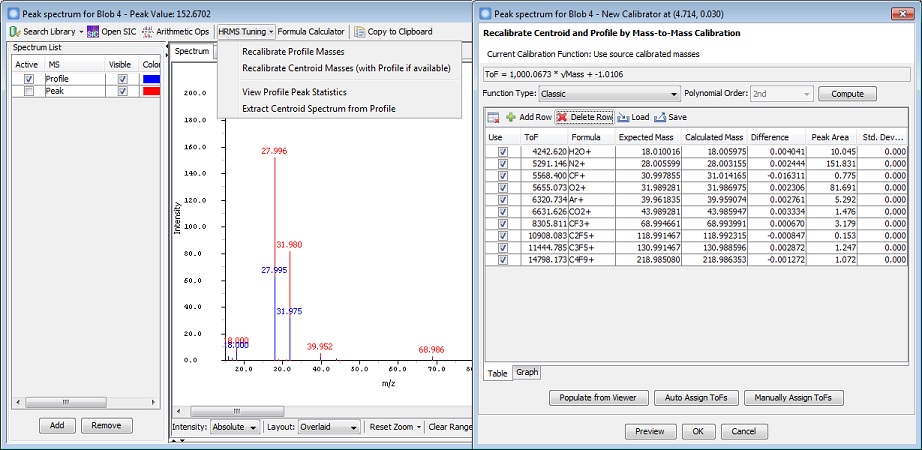

GC Image LCxLC Edition 2.7 Release 1 has new and improved operations for mass calibration with HRMS data, including:

The software supports exporting centroid data extracted from profile data directly to a GCI file (with accompanying CDF file), in addition to the option of exporting to a standalone CDF file.
The software supports recalibrating centroid data with or without profile data, in addition to recalibrating the profile data only. After recalibration is configured, users can export the recalibrated centroid data.
The software has a new, default, context-based MS mode that opens MS View for point, blob, or area spectra based on content. If the mouse-click location is not within a blob or area, a point spectrum is opened; otherwise, both the apex and summed spectra for the blob or area are opened. If the location is within more than one object, a popup menu allows selection.

MS Library Search for Area Objects

GC Image LCxLC Edition 2.7 Release 1 introduces MS library search supports for areas.

New Library Search actions directly search for matches with spectra from all or selected areas.
MS Viewer now can apply the hit list from a manual library search to an area.

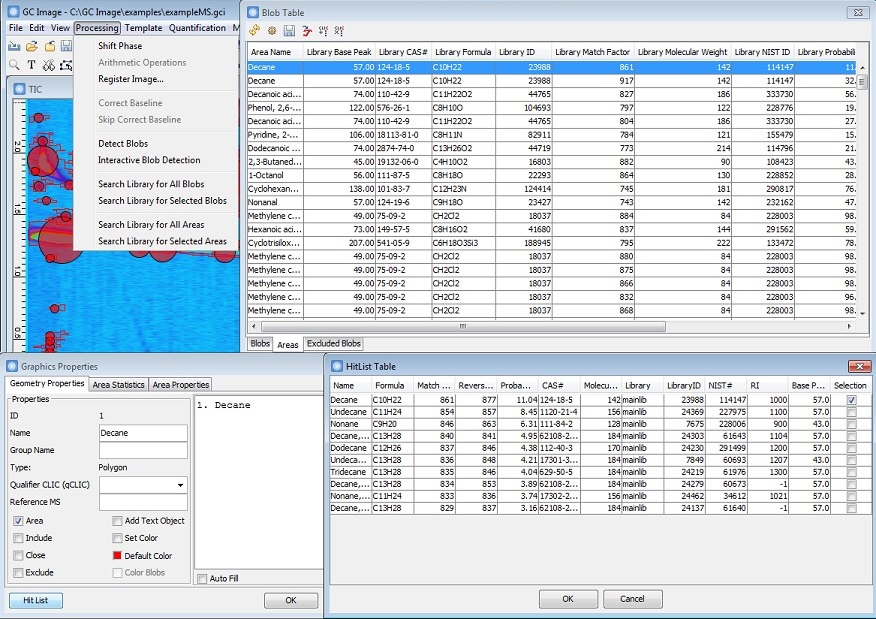

Area properties now include a Hit List that allows users to examine search results and select the preferred match.
Library properties now can be added to the Areas tab of the Blob Table.

New Quantifier Ion Properties

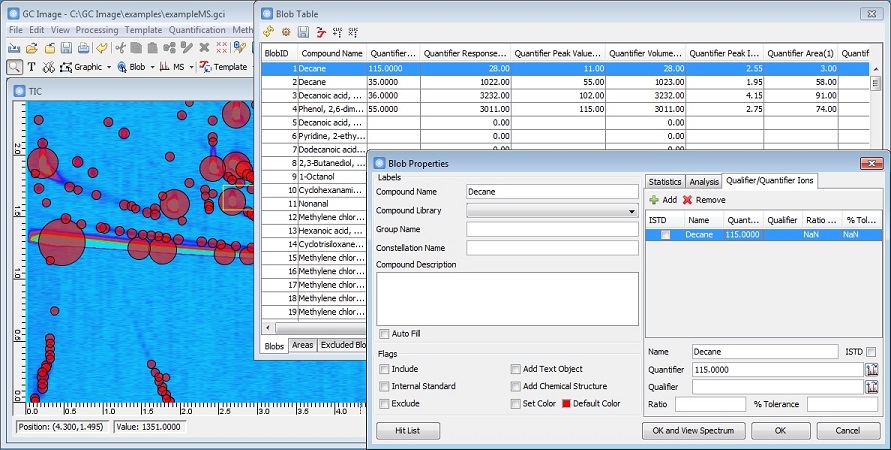

GC Image LCxLC Edition 2.7 Release 1 has new properties and improved operations for quantifier ions, including:

A quantifier ion can be set as an internal standard for blobs and areas for calibration and quantification, to support isotope dilution analysis.
New blob/area statistics for quantifier ions include retention times, area, peak value, and volume.

New Calibration and Quantification Tools

GC Image LCxLC Edition 2.7 Release 1 introduces new tools for calibration and quantification. The process for generating calibration tables is simplified by a new UI and options, including:

New Quantification menu options for tools to conveniently create calibration tables directly from a set of chromatograms, and to load, edit, and save calibration tables.

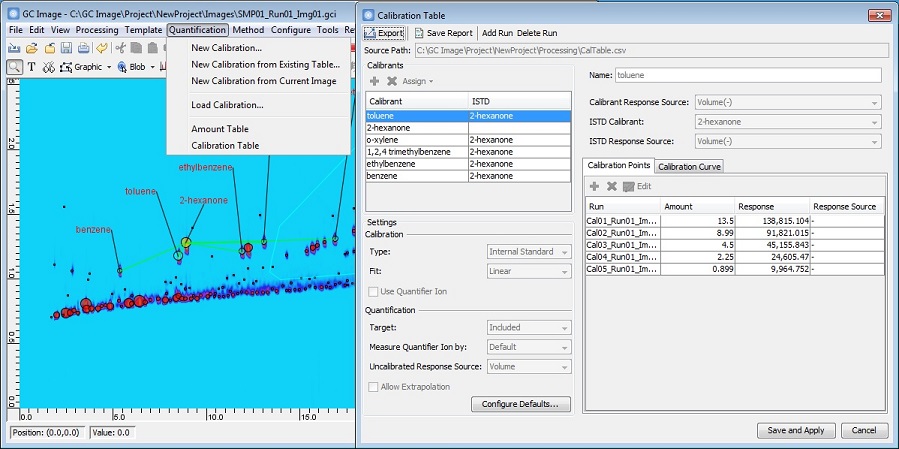

A new Calibration Table interface that allows users to examine and edit individual calibrants. Calibration points and graphs of the calibration curves are easily accessible through a tabbed view.
New calibration function types, Quadratic and Piecewise Linear, in addition to Linear.
New calibration method files that allow calibration settings to be customized and stored for reuse.
Quantitation using ISTD Ions have been made easily available with the new quantitation settings and UI improvements.
Additional quantitation settings have been added to give users more options. The quantification settings allow users to control the targets to be quantified, how to measure the quantifier ions, the uncalibrated response type, and if they want to allow extrapolation.
